102MM BLACK THROTTLE BODY ALUMINUM TALL INTAKE MANIFOLD FOR LS3 L92 L99 LSA 6.2L
NPBoosted
FITS LS3 / 6.2L 6.0L 5.3L 4.8L / Tall Custom TIG Welded NPboosted Intake Manifold Kit
102mm Throttle Body & Fuel Rails w/ AN fittings
(Tig Welded Aluminum) / LS LS3 L92 Long Length 225mm Raised Port Height

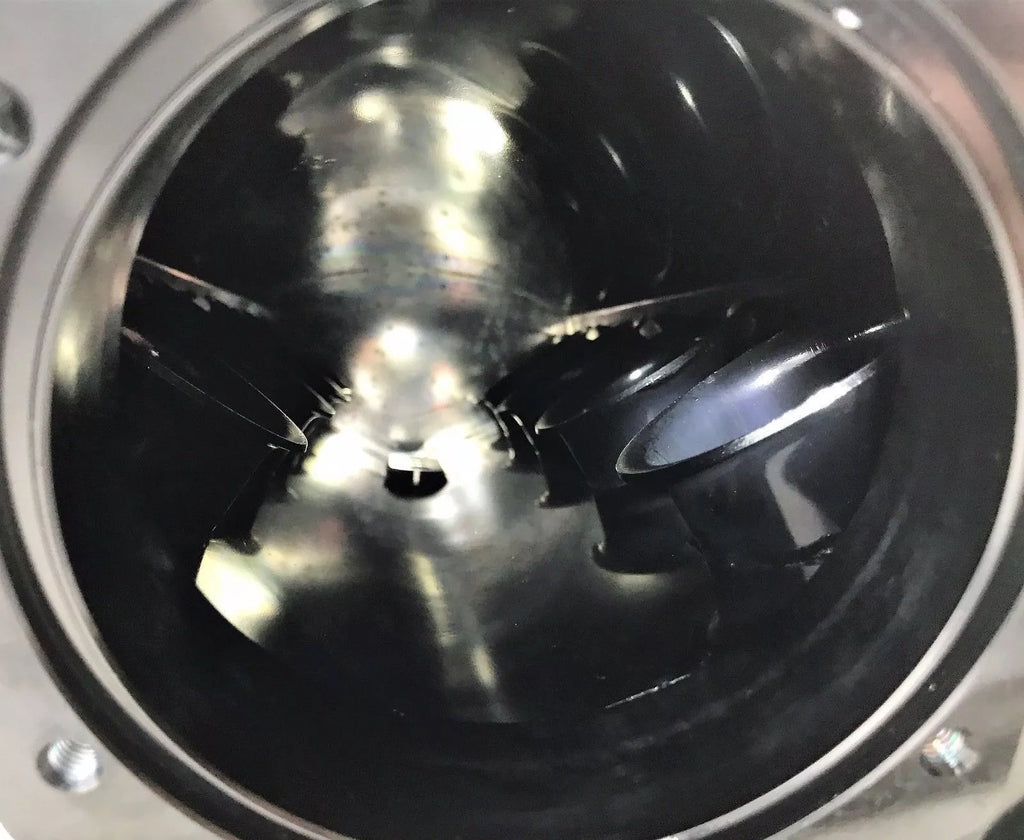

(Inner Manifold Velocity Stacks)
~102mm Large Mouth Throttle Body Kit Included~

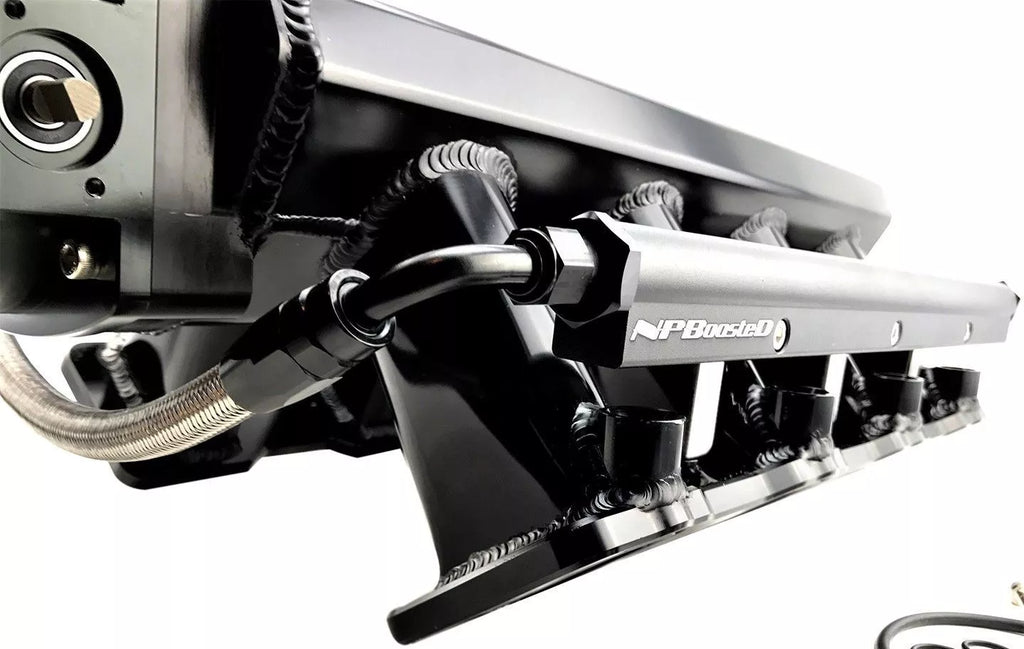

Fuel Rails Included With mounting Hardware and Steel Braided Center Connecting Fuel Line
FITS SMALL BLOCK V8 GEN. III/IV (LS-BASED)
- FITS 4.8 L / 293 CI (L20, LY2)
- FITS 5.3 L / 325 CI (LC9, LH6, LH8, LMG, LY5)
- FITS 6.0 L / 364 CI (L76, L96, LFA, LY6)
- FITS 6.2 L / 376 CI (L92, L99, LS3, LSA)
Original LS3 Engine Applications:
- FITS 2008–2013 Chevrolet Corvette
- FITS 2010–2015 Chevrolet Camaro SS (manual only)
-
FITS 2008–2017 Holden Commodore family:
- FITS 2009 Pontiac G8 GXP
- FITS 2009–2013 Vauxhall VXR8
- FITS 2008–2013 HSV GTS
- FITS 2008–2015 HSV Maloo R8 and Senator Signature
- FITS 2008–2016 HSV Clubsport R8
- FITS 2014–2017 Chevrolet SS
- FITS 2015–2017 Holden Commodore
-
FITS 2008–2016 Holden Caprice family:
- FITS 2008–2016 HSV Grange
- FITS 2015–2017 Holden Caprice-V
Fits: LS based engines with "Raised Rectangle" intake port shape
Aftermarket Hoods Needed for Clearance on Most applications
Features:
Multi Port Fuel Injection type
Throttle Body Standard 4 Bolt OEM design
0 Degree Throttle Body flange Angle
3mm Plenum Thickness - Handles Forced Induction up to 35PSI
8.9" Manifold Height

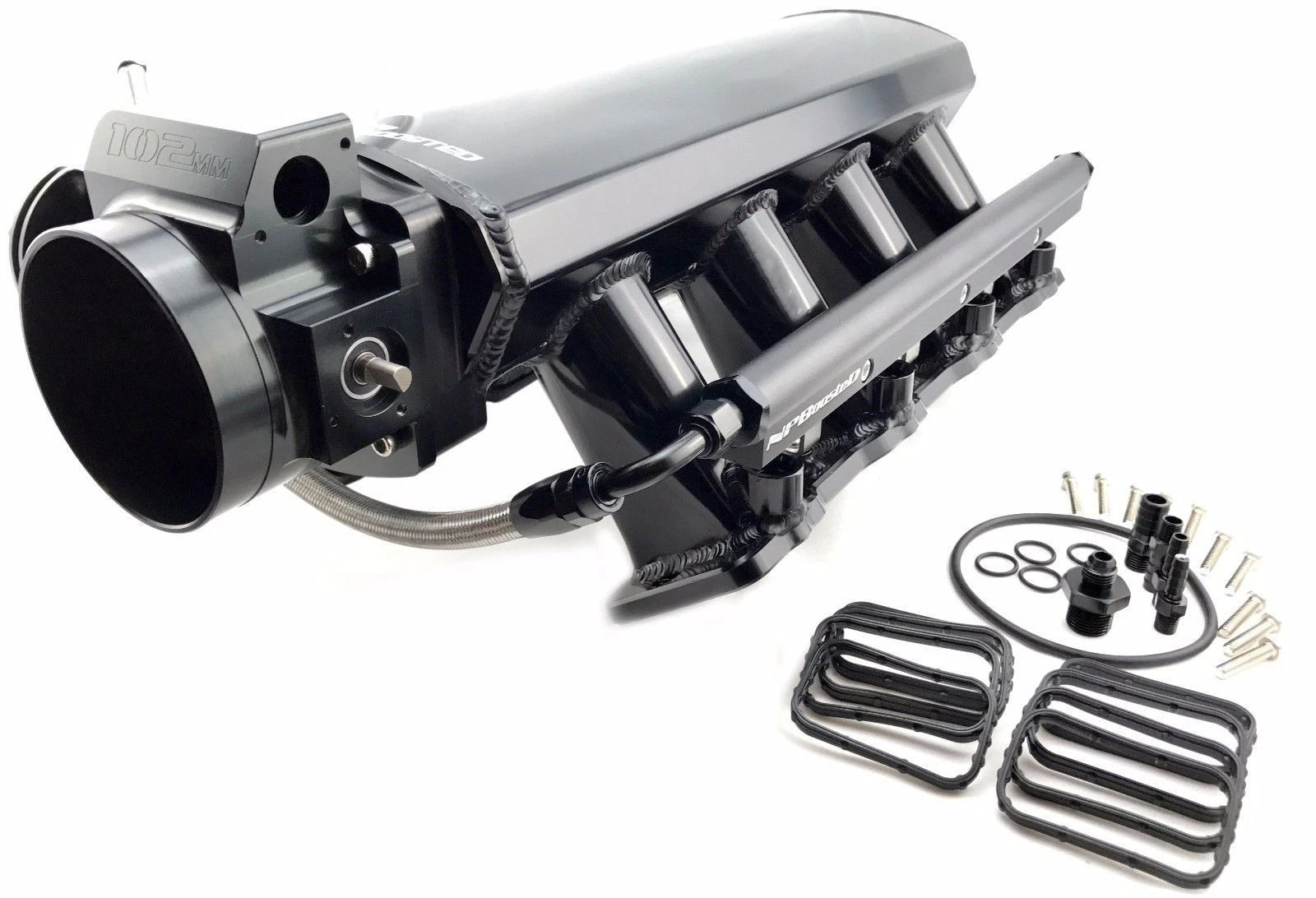

Included With Manifold kit:
Lower Manifold Ports O rings - Throttle Body O rings - AN fitting O rings
Bolts / Nuts / Lock washers - All Hardware Needed
Vacuum Line Fittings
