80lb 835cc Fuel Injector FOR LT1 LS1 Camaro Corvette Impala Firebird GTO TransAm
NPBoosted
8 Pcs 80LB 835cc Fuel Injectors FITS TBI LT1 LS1 12 OHM High Impedance 110324 FI114992 SRT8 Corvette Camaro Mustang GT Cobra Lightning GTO Charger Challenger
Fitment Guide:
These High Impedance (Approx. 12 OHMS) Saturated injectors will fit all of the following models:
1994-1995 BMW 530i
1994-2003 BMW 540i
1985-2002 Chevrolet Camaro
1985-2004 Chevrolet Corvette
1994-1996 Chevrolet Impala
1986-1995 Ford Mustang GT, LX and Cobra 5.0L
1996-2004 Ford Mustang GT
1999-2004 Ford Lightning
1996-2004 Lotus Esprit
1985-2002 Pontiac Firebird
2004-2006 Pontiac GTO
1985-2002 Pontiac TransAm
The following models must use an injector plug Adapter
2010-2013 Chevrolet Camaro
2005-2013 Chevrolet Corvette
1999/2001 Ford Mustang Cobra
2003-2004 Ford Mustang Cobra
2003-2004 Ford Mustang Mach I
2005-2013 Ford Mustang V8
The following models require spacers & longer fuel rail bolts & Injector Plug adapter
2005-2013 Chrysler 300C HEMI
2008-2012 Dodge Challenger HEMI
2006-2012 Dodge Charger HEMI
2005-2008 Dodge Magnum HEMI
2006-2013 Jeep Grand Cherokee SRT8
· THESE HIGH PERFORMANCE INJECTORS WILL REQUIRE ECU TUNING
· INJECTOR CLIPS MAY BE REQUIRED FOR SOME MODELS
Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95
Package Contents:

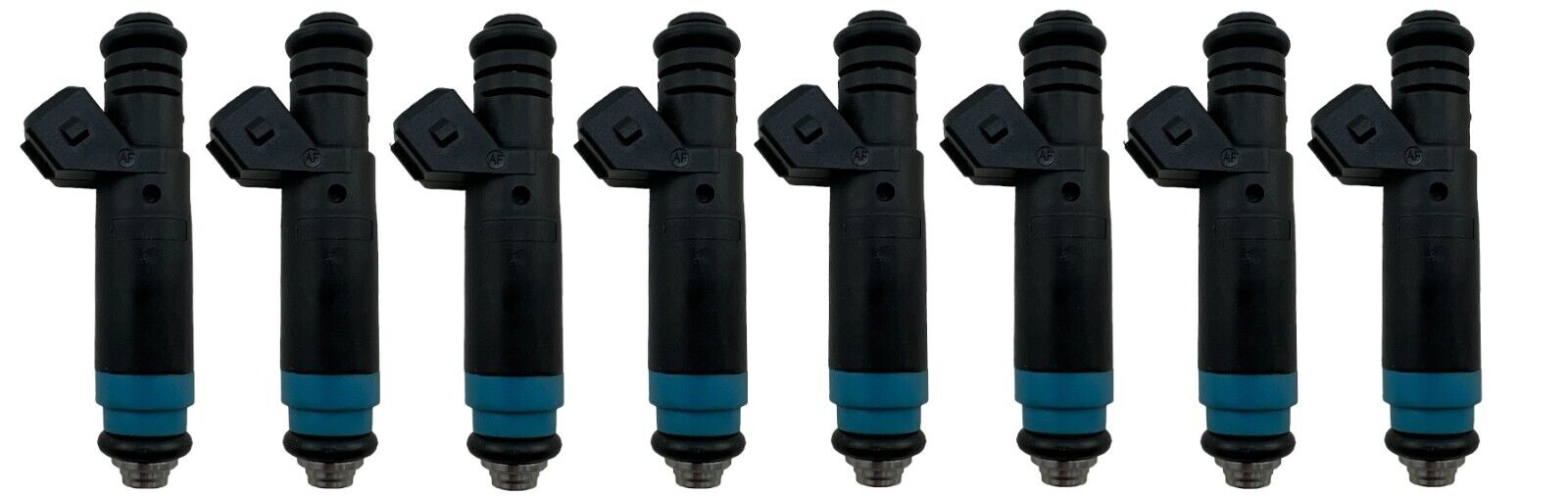

(8) Aftermarket Fuel Injectors - Set of 8
( 2 PIN ) EV1 Connector Plug Type
Specs:
Quantity: 8 Fuel Injectors
Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 1 hole
Connector Type: Bosch EV1
Filter Design: Basket filter design at inlet
Fuel Delivery: Single Nozzle Cone Shape
Spray Pattern: 15 Degree Spray Cone
Technical Data
Coil Resistance: 12 Ohms / High Impedance
Static Flow Rate : 80 lb/hr = 835 cc/min at 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time 1.14ms at 14VDC
Turn off time: 0.85ms at 600KPa
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG / Max 100PSIG
Variance:3%
Warranty: 1 Years
Mechanical Data
Overall Length: 2 7/8 inches, 74 mm
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16 mm
Orings: Top and bottom, 14.5 mm
Professional Installation is Highly Recommended (No Instructions Included)
Cross Reference Part Numbers:
109991, 110324, FI114991, FI114992, NP-4992INJ
|
