2 CDI SWITCH BOXES 90 - 225 HP 3 & 6 CYL MERCURY OUTBOARD MARINE MOTOR MODULE
JDMprods
NPBoosted Marine ignition coils

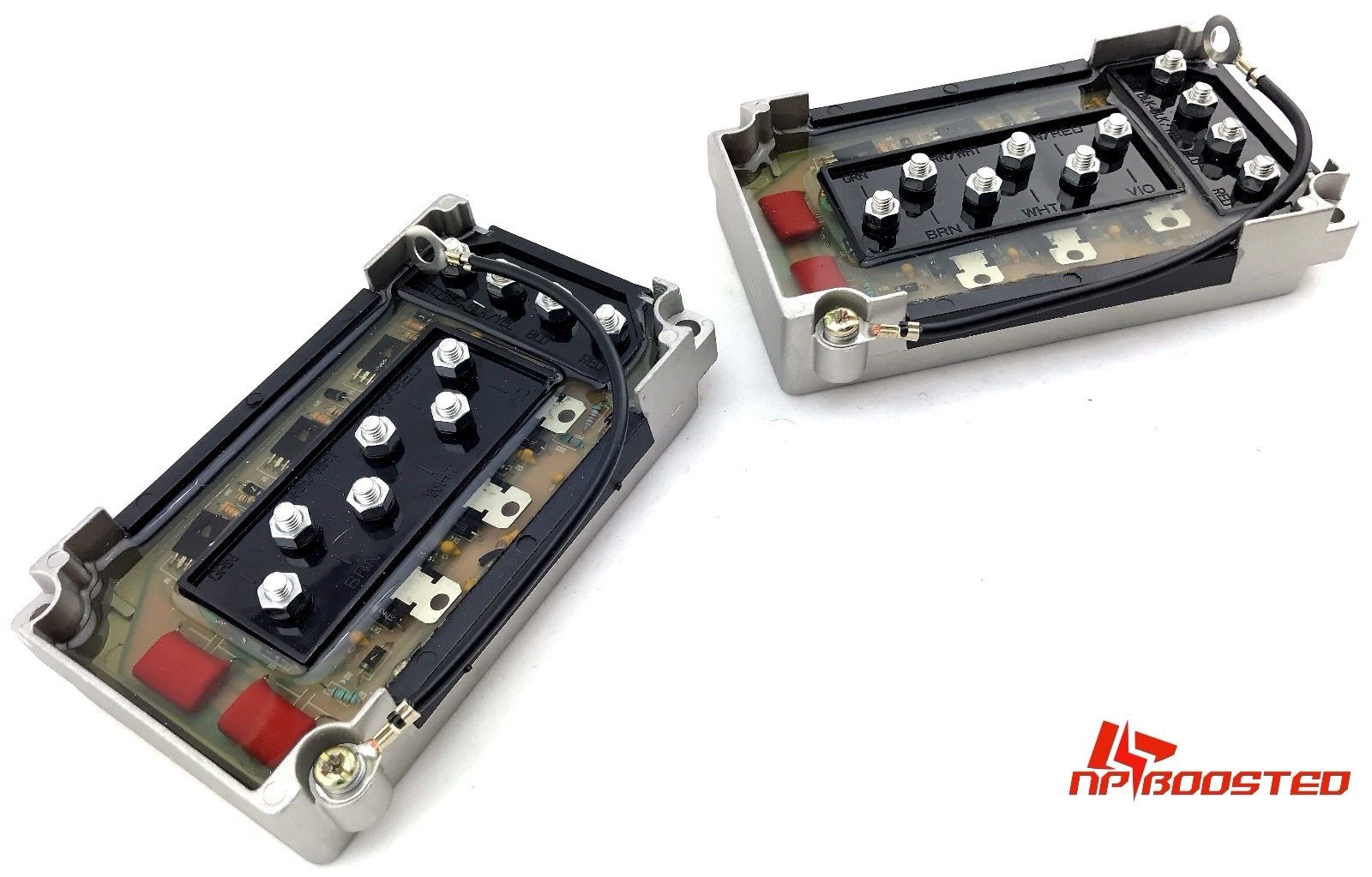

New (2) TWO Aftermarket NPboosted Switch boxes CDI Modules for Mercury Marine Outboards and SportJet
*New* Ground Connection Lead Included with Each CDI box
Fitment Guide:
Mercury 50hp 3cyl 6428681-0D000749
Mercury 60hp 3cly 6428681-0D000749
Mercury 65hp 4382057-4571651
Mercury 70hp 4571652-5128279
Mariner 70hp 5128280 - Later
Mercury 70hp 5579016-6428680
Mercury 70hp 3cly 0C272000-0D283221
Mercury 75hp 3cyl 0C272000-0D283221
Mercury 80hp 3cyl 0A996142-0C221999
Mercury 90hp 6cyl 5299506 - Later
Mercury 90hp 3cyl 0A996142-0D283221
SportJet 90hp 0E023150-0E095087
Mercury 105hp Jet 0D082000-0G303045
Mercury 115hp 6cyl 5314656- Later
Mercury V-135 0A904646 - Later
Mercury 140hp 5327663 - Later
Mercury 140hp Jet 0D082000-0G960499
Mercury V-150 4868998-5129429
Mercury V-150 5129480-0G960499
Mercury V-150 XR2 6616991-0A904645
Mercury XR4, Magnum II 0B242885-0D819999
Mercury V-150 XR6 0D82000-0G960499
Mercury V-175 4301235-5180108
Mercury V-175 5180109-0G960499
Mercury V-175 EFI 5180109-0G960499
Mercury V-175 XR1 5180109-0G960499
Mercury V-200 4839034-5158928
Mercury V-200 5158929-0G960499
Mercury V-200 XR1 5158929-0G960499
Mercury V-220 0B117316 - Later
Mercury V-225 5628028 - Later
Interchange Part Numbers:
332-7778A12332-7778A9
332-7778A6
332-7778A3
332-5524A1
332-7778A1
332-7778A7
For Installation:
Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "
Black/Yellow" Stud on the New Box.
