4 Pack 41kV Inductive Dumb Type Ignition Coils Custom Hi Energy Spark Delivery

JDMprods

USD $199.95


NPBoosted

27

Four Performance 118Mj / 41kV Inductive "Dumb" Type Ignition Coil Packs 4 Cylinder Application for Haltech Fueltech Microtech AEM Fast

Fitment Guide:
Custom Hi Performance Application - 4 Cylinder
Inline 4 / Flat 4 Engines
Turbo / Supercharged / Nitrous / High Compression

Popular Custom Coil Upgrade Choice on
N54 Twin Turbo / N55 Single Turbo BMW Engines

Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95

Package Contents:

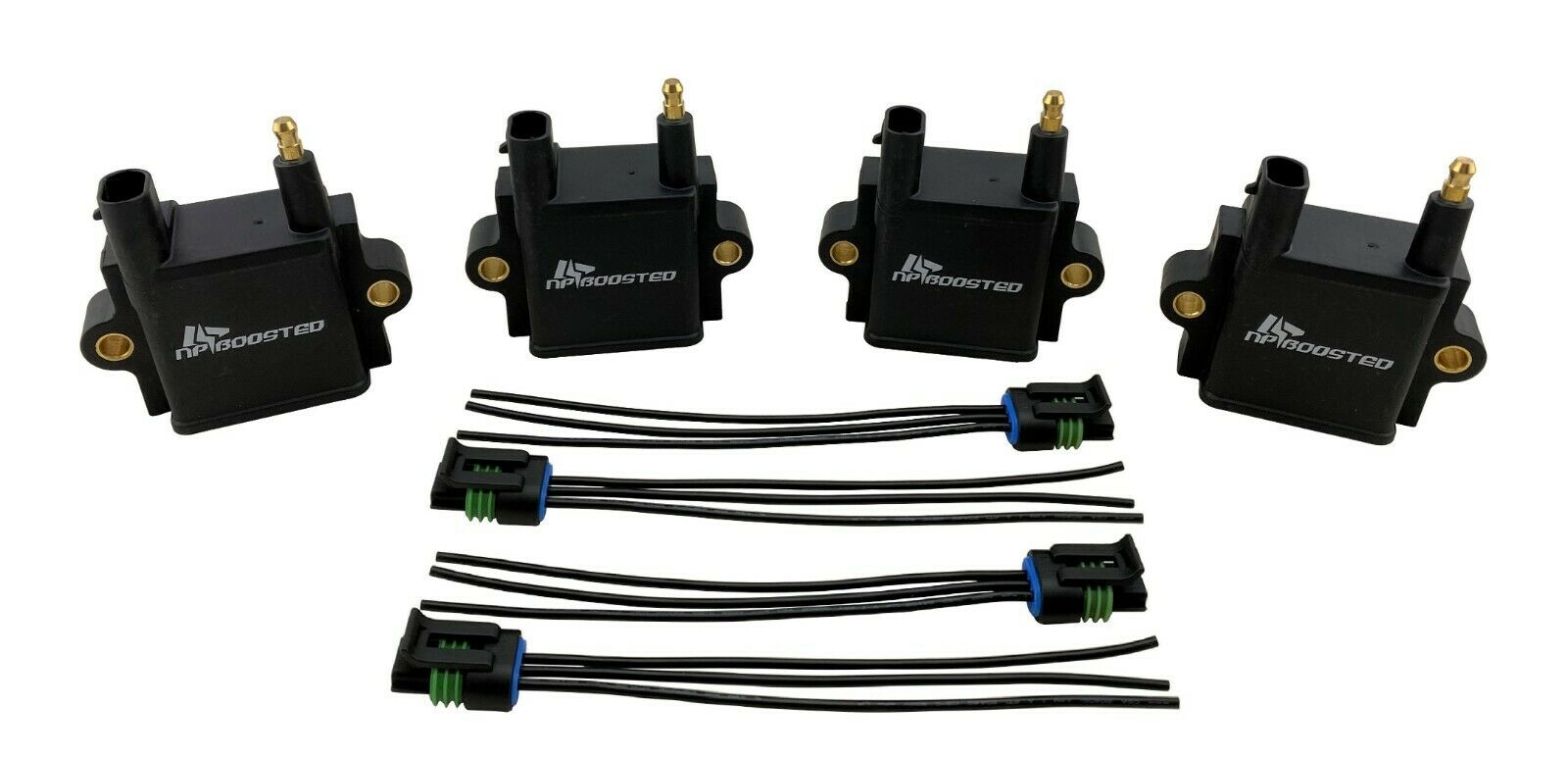

(4) Hi Energy 118 mJ - 41kV Output Inductive Ignition Coil Packs
(4) Wire Harness Pigtails w/ Connector Clip Plugs
( 3 PIN ) Connector Plug

Specs:
Primary Resistance: 0.5 Ω +/- 10%
Primary Inductance: 4.8 mH +/- 15%
Secondary Resistance: 8.5 kΩ +/- 20%
Secondary Inductance: 22.5 H +/- 20%
Output (50pF load): 41 kV +/- 10%
Output Energy: 118 mJ +/- 7%
Peak Secondary Current: 100 mA +/- 7%
Arc Duration: 3.2 mS +/- 10%
Turns Ratio 71:1
Maximum Battery Voltage: 17 Volts
Base Dwell: 3.0 mS
Max Continuous Dwell: 9 mS but don't exceed 40% duty cycle
Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum
High Tension Wire Terminal: HEI "spark plug top" Style

Cross Reference Part Numbers:

NP-0227IC-4, 30-2852, 302852, 601-0021, 601-0108, 8232
