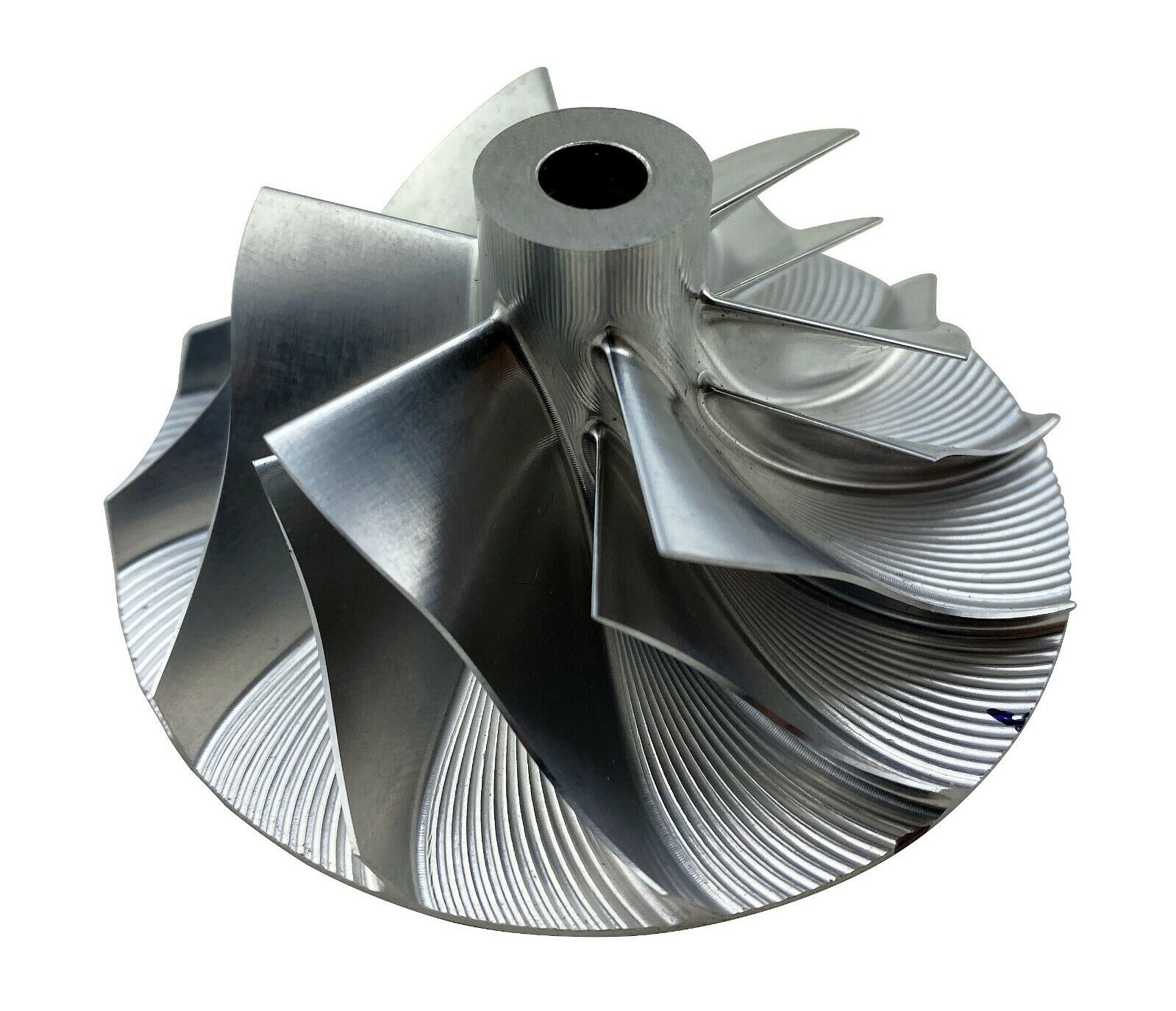

6+6 Turbo Billet Compressor Wheel FOR Mitsubishi EVO 10 X TD05H 152G6 47/68mm OE
JDMprods
USD $129.95
NPBoosted
6+6 Turbo Billet Compressor Wheel Upgrade FOR 2008-2016 Mitsubishi Lancer EVO Evolution 10 X TD05H 152G6 47/68mm Fits OE Size Turbocharger Housing
Fitment Guide:
4B11 2.0L MIVEC Turbocharged
2008-2016 Mitsubishi Lancer Evolution 10 EVO X / CZ4A
Fitment Specifications:
All Turbo 2.0L EVO X Models - MR, GSR
JDM, USDM, CDM, European
Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95
Package Contents:
(1) 6+6 Billet HiFLow Compressor Wheel OE Upgrade
Specs:
Billet Wheel Spec
- Nose Dia. : 14.22 mm
- Inducer Dia. : 47.05 mm
- Exducer Dia. : 68.01 mm
- Extend Tapered Tip Exducer Dia. : No Extend Tip
- Tip Height : 4.69 mm
- Super Back Height: 2.90 mm
- Overall Height : 31.50 mm
- Bore Size : 6.50 mm
- Standard or customs size : Standard size
- Blade : 6+6
- Trailing angle : 60 Degree
- Bore Type : Through
- Fits OE Comp Housing : Fit OE Comp Housing
- Cutback : 0.0
- Rotation : Forward
Material
- Forged Aluminum
Cross Reference Part Numbers:
TD05H-152G6, TD05HA-152G6, MFSD638C, 49378-01640, 49378-01641, 49378-01642, 49378-01643, 49378-01646, 49378-08011, 4937808011, 4937801640, 4937801641, 4937801642, 4937801643, 4937801646, 49178-43200, 4917843200
|
