Billet CHRA Turbo Repair FOR GT3582R BA BF XR6 F6 Typhoon Garrett G6E Barra XR6T

JDMprods

USD $479.95



NPBoosted

gt3582-small

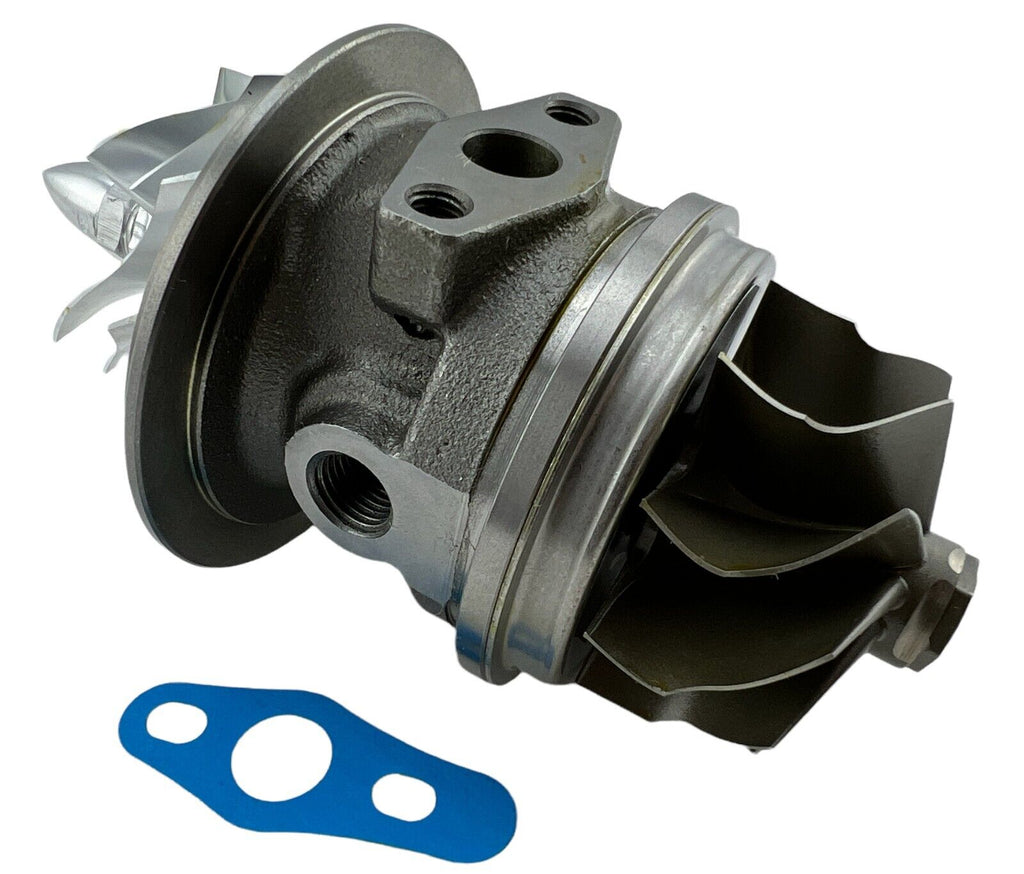

Dual Ball Bearing Turbo Rebuild Cartridge CHRA Core FOR GT3582R 6+6 Billet Compressor Wheel / 10 Blade Exhaust Turbine - Turbocharger Repair

Fitment Guide:
GT3582R Turbochargers
Dual Ball Bearing w/ Bullet Nut Billet Wheel
2002+ BA Falcon XR6T
2004+ BF Falcon XR6T
2008+ FPV F6 / Typhoon / Tornado
2006+ Territory

Fast & Free Shipping: USA & Canada
Worldwide Shipping: $99.95

Package Contents:
(1) Aftermarket Turbo Core CHRA Cartridge
Dual Ball Bearing w/ 6+6 Bullet Tip Billet Wheel
Felt Gaskets & O Ring Seal Kit

Specs:
Bearing Type: Dual Ball Bearing
Cooling Type: Water & Oil Cooled
Compressor
EXD: 3.23"
IND 2.42"
Compressor Wheel: 61.4mm / 82.0mm
Nose OD:16.52mm(6+6 Blades)
Trim: 56
Blades: 6 short 6 long / 6+6
Turbine
EXD:2.45"
IND:2.68"
Wheel DIA: 62.3mm / 68.00mm
Trim: 84
Blades: 10

Professional Installation is Highly Recommended (No Instructions Included)

Cross Reference Part Numbers:

NP-3852CHRA-1, GT3582R, 706451-5005S, 7064515005S, 706451-5, 7064515
