Camaro 255LPH EFI Fuel Pump for TBI LT1 LT4 LS1 High Pressure Replaces F20000169

JDMprods

USD $79.95

NPBoosted Performance Parts

255LPH EFI High Performance Fuel Pump Kit  TBI LT1 LT4 LS1

Specification

· Composite Turbine Impeller design for quiet operation
· Offset Inlet easily to install, In-line with outlet
· Designed for high output naturally aspirated and forced induction EFI vehicles
· For gasoline vehicles (pump life may be diminished when used with E85 fuel)
· Fuel Strainer: 30 micro gradient density material.

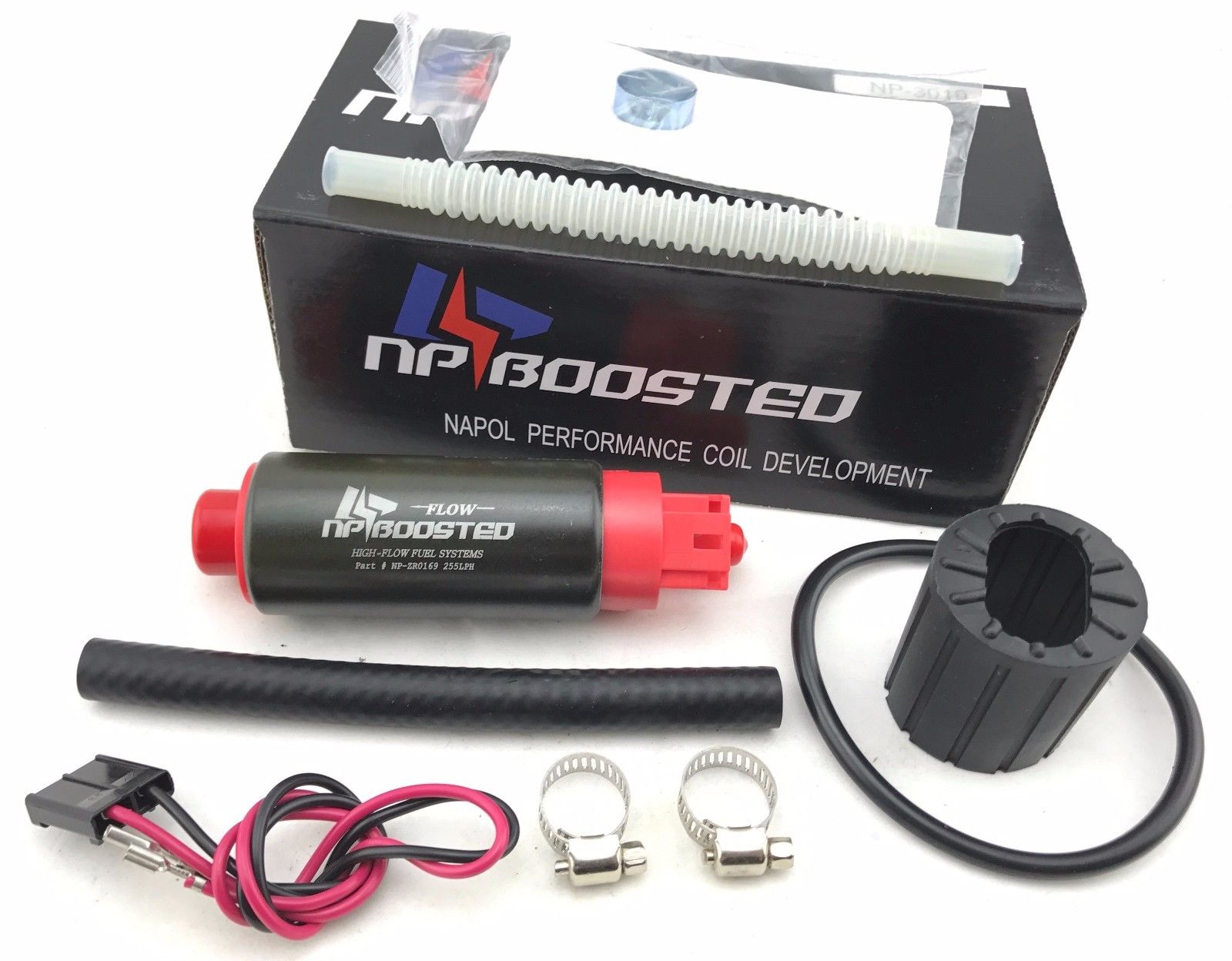

255LPH Hi Output Fuel Pump assembly
· Flexible plastic hose
· Rubber hose
· Rubber ring
Rubber Pump Cap
Pigtail Wiring Harness w/ Connector Clip
· Stainless Steel Clamps: 2pcs


Free Shipping: USA & Canada

Worldwide Shipping: $49.95



· Min Voltage Input:6V
· Max Voltage Input:18V
· PRV Activation:0-100PSI
· Flow Rate: 255LPH/43PSI(13.5V)
· Current(40PSI):<13A(13.5V)
· Horsepower Capabilities:  Up to 600HP naturally aspired and 550HP Turbo engine separately

· Overall Length (tip to tip): 5"(123MM)
· Length of Pump Body Metal Case: 3 1/8"(80MM)
· Pump Body Diameter: 1 1/2"(39MM)
· Inlet Fitting: 7.7mm ID, 11.0mm OD
· Outlet Fitting: 5/16" hose clamp
Fitment:
These high performance fuel pumps will fit the following models, all gas engine types, or style for vehicles listed:

1985-1992   Chevy & GM All models

1984-1987    Buick Grand National
1984-1996    Buick Regal
1991-1996    Buick Roadmaster
1984-1987    Buick T-type
1988-1988    Cadillac Allante
1985-1988    Cadillac Cimarron
1985-1994    Cadillac Deville
1986-1995    Cadillac Eldorado
1984-1996    Cadillac Fleetwood
1985-1992    Cadillac Fleetwood Brougham
1986-1994    Cadillac Seville
1985-1994    Chevrolet Astro
1985-1995    Chevrolet Blazer
1985-2002    Chevrolet Camaro V6
1985-2002    Chevrolet Camaro V8
1985-1996    Chevrolet Caprice
1985-2004    Chevrolet Corvette
1985-1990    Chevrolet Impala
1994-1996    Chevrolet Impala SS
1985-1988    Chevrolet Monte Carlo
1995-1999    Chevrolet Monte Carlo
1996-1998    Chevrolet Silverado
1992-1999    Chevrolet Suburban
1995-1999    Chevrolet Tahoe
1989-1998    Land Rover Discovery 1
1987-1995    Land Rover Range Rover Classic
1985-1995    GMC S15 Jimmy, Pickup, Sonoma
1985-1996    GMC Safari Van
1991-1993    GMC Syclone
1991-1993    GMC Typhoon
1992-1995    GMC Yukon
1986-1989    Pontiac Bonneville
1985-1988    Pontiac Fiero
1985-2002    Pontiac Firebird V6
1985-2002    Pontiac Firebird V8
1985-1998    Pontiac Grand Am
1986-2001    Pontiac Grand Prix
1985-2002    Pontiac Trans Am
