RECTIFIER VOLTAGE REGULATOR FOR MERCURY MARINER Outboard 6 Wire 815279-3 883072T
JDMprods
NPBoosted

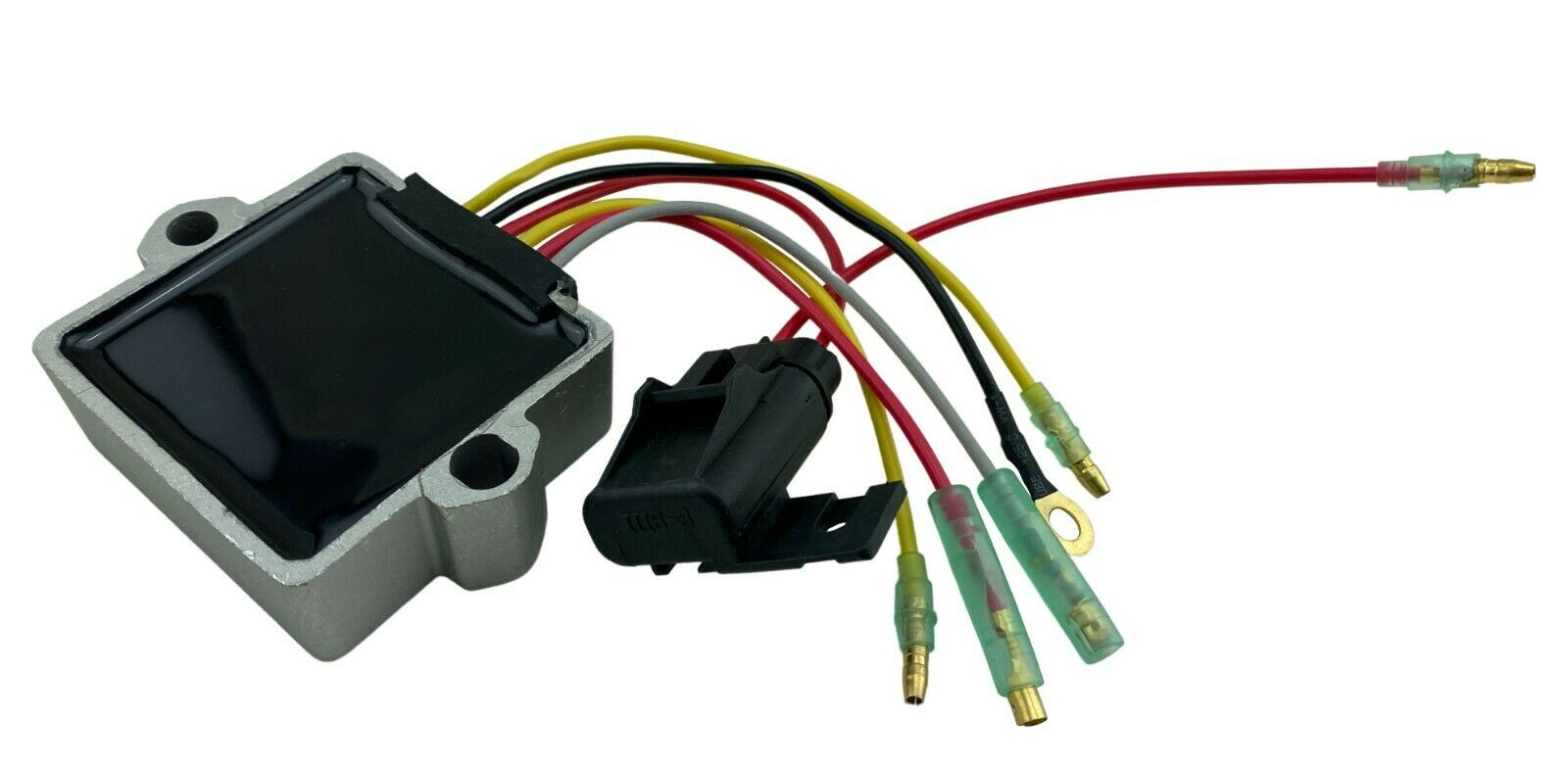

6 WIRE AFTERMARKET VOLTAGE REGULATOR / RECTIFIER FITS
MARINER / MERCURY OUTBOARD MARINE APPLICATIONS
Regulator Rectifier for Mercury Outboards late model - 6 Wire
Replaces Mercury part numbers 883072T, 854515T1, 854515, 856748, 815279T, 815279-3, 815279-5, 830179T, 830179-2.
This new rectifier is a "6-Wire" w/ Fuse Plug kit, it's designed for several applications for both Mercury Outboard from 30-200HP and Force 40-150 HP.
Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95
The Terminals are designed as the following:
Grey - Tach
Yellow - AC
Red (Female) - Sense
Red (Male) - B+
Black - B-
Yellow - AC
Features:
• T-Clad Hybrid construction
• Series type Rectifier/Regulator
• Marine Engine Applications
• TACH outputCross Reference Part Numbers:
MERCURY MARINE: 815279-3, 815279-5, 815279T, 830179-2, 830179T, 854515, 856748, 883072, 883072T, 8M0006034, 856748, 883072, 883072T, 1784M, 18-5743, 8M0045112
|
