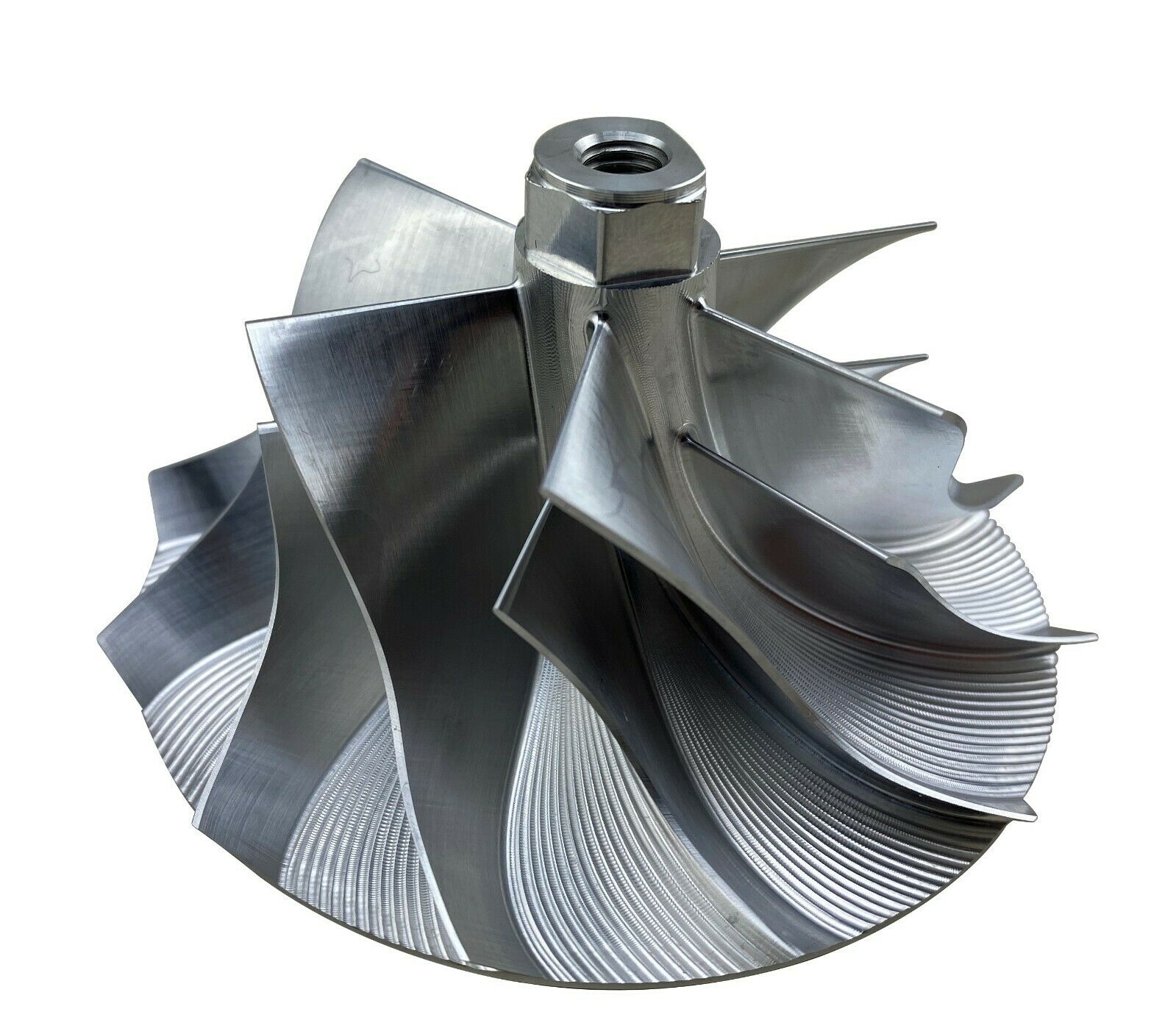

Turbocharger Extended Tip Billet Compressor Wheel for Powerstroke 6.0L Diesel V8

JDMprods

USD $139.95


NPBoosted



27
6+6 Billet Turbo Compressor Wheel for 2005-2010 6.0L Powerstroke Diesel V8 fits Turbocharger GT37 GT3782VAS

Fitment Guide:
Drop In Replacement For Turbo Compressor wheel on
Garrett GT37 GT3782VAS / 743250-0014
2003-2007 FORD F-250 SUPER DUTY 6.0L 363ci OHV V8 DIESEL TURBO
2003-2007 FORD F-350 SUPER DUTY 6.0L 363ci OHV V8 DIESEL TURBO
2004-2007 FORD F-450 SUPER DUTY 6.0L 363ci OHV V8 DIESEL TURBO
2003-2007 FORD F-550 SUPER DUTY 6.0L 363ci OHV V8 DIESEL TURBO
2005 FORD EXCURSION 6.0L 363ci OHV V8 DIESEL TURBO
2005-2010 E-350 Super Duty 6.0L Diesel Turbo
2005-2010 E-450 Super Duty 6.0L Diesel Turbo

Check that your OEM Compressor Wheel Inducer Measures 56.8 mm

Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95

Compressor Wheel Specs:
Nose OD. : 15.77 mm
Inducer OD: 56.83mm
Exducer OD: 82.04 mm
Extend tapered tip exducer OD: 87.33 mm
Tip height: 5.58 mm
Super back height: 5.40mm
Overall height: 49.00m
Bore size (Type): Bore 7.48mm
(Threaded M7x1.0LHT) Left Hand Threaded to attach
Secure with 10 Ft-Lbs Torque w/ Thread Locking Fluid
Maximum boost 5 bar / 70 Psi
Extended Tips
Slim Nose Increased w/ Blade Size
Larger Blades Increase the Flow
Better Throttle Response

Package Contents:
(1) Hi Flow Billet 6+6 Turbo Compressor Wheel

Cross Reference Part Numbers:

NP-BLLT6LCW, 743250-0014, 7432500014​, GT37, GT3782VAS  ​

CUSTOMER NOTIFICATION

⚠️ WARNING REGARDING EMISSIONS LAWS ⚠️

"Not legal for sale or use on pollution-controlled motor vehicles anywhere in North America.

Legal ONLY for Off Road competition racing vehicles and cannot be used on vehicles that are operated on public streets, roads, or highways."

By installing this product onto your vehicle, you assume all risk and liability associated with its use.

It is your responsibility to make sure your vehicle complies with all federal, state, Provincial and local emissions laws

Due to this items high performance nature, this product may void vehicle manufacturers warranty.

By installing this product onto your vehicle, you assume all risk and liability associated with its use.



(Not For Sale In State of California)
